Bubble Foil Insulation from EcoFoil
Browse more Bubble Foil Insulation

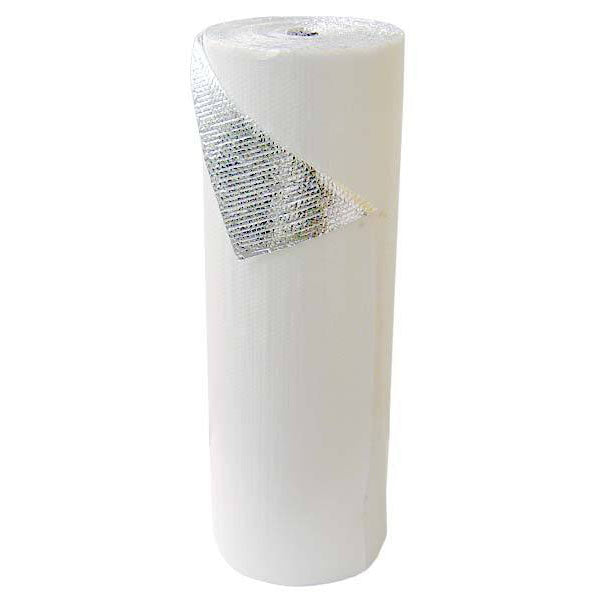

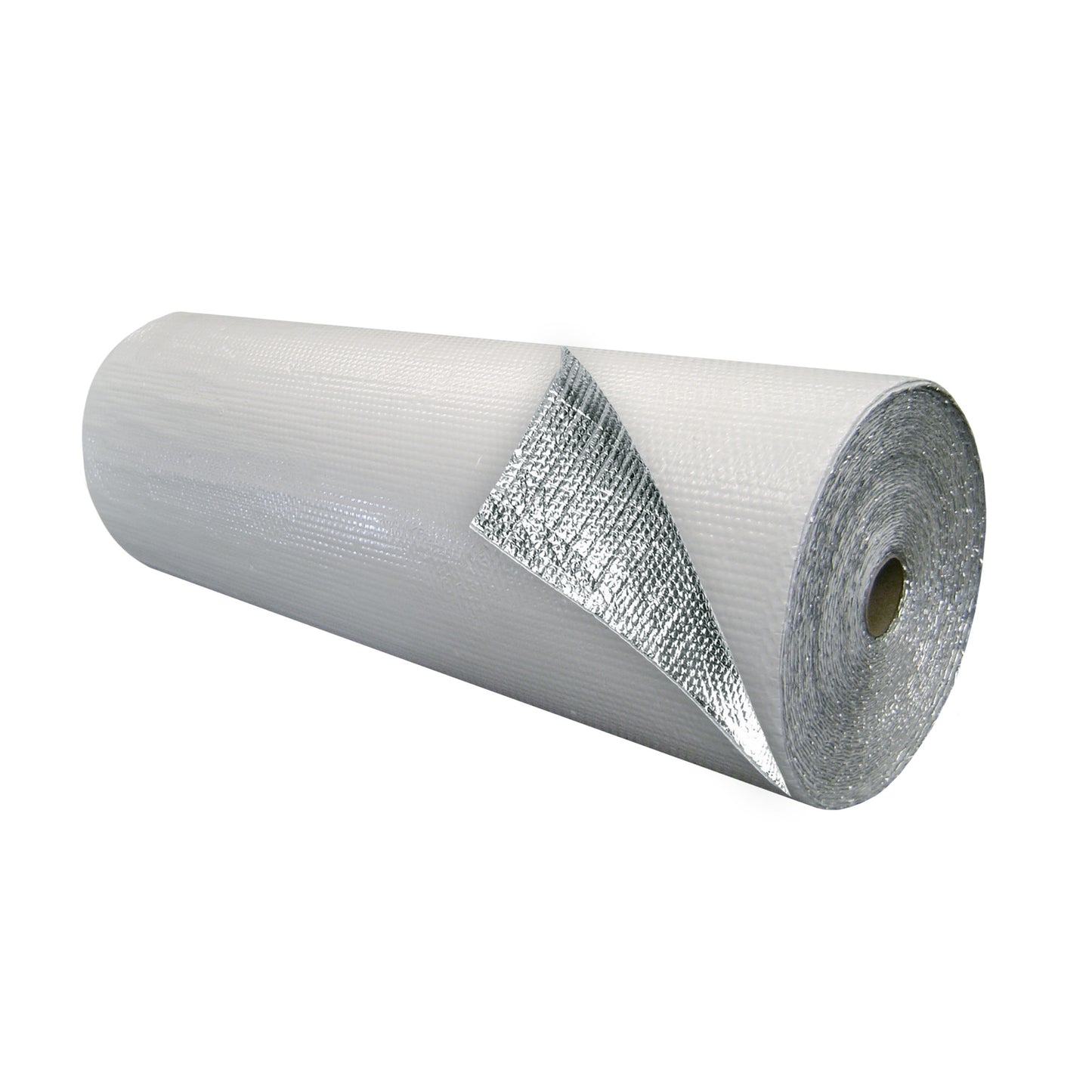

Single Bubble Insulation - White/Foil - 4' X 125' (500 sq ft)

Single Bubble Insulation - White/Foil - 4' X 125' (500 sq ft)


SKU: EF2510-48-125
Regular price $149.00
Regular price Sale price $149.00
Sale Sold out Free Shipping!
Payment methods
Accepted payments:
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
shipping truck, lead time icon
Ships Oct 7 when you order now

Product details:

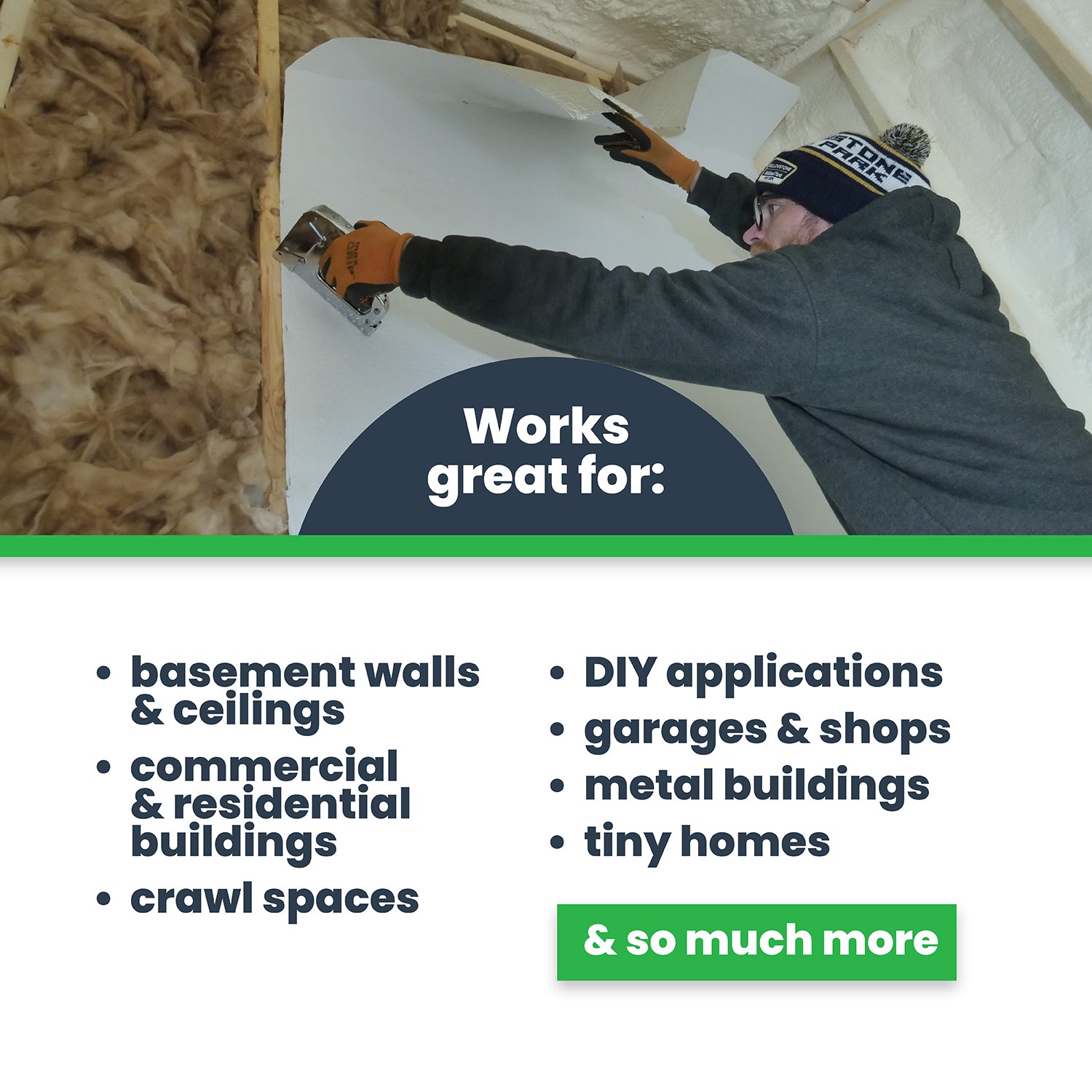

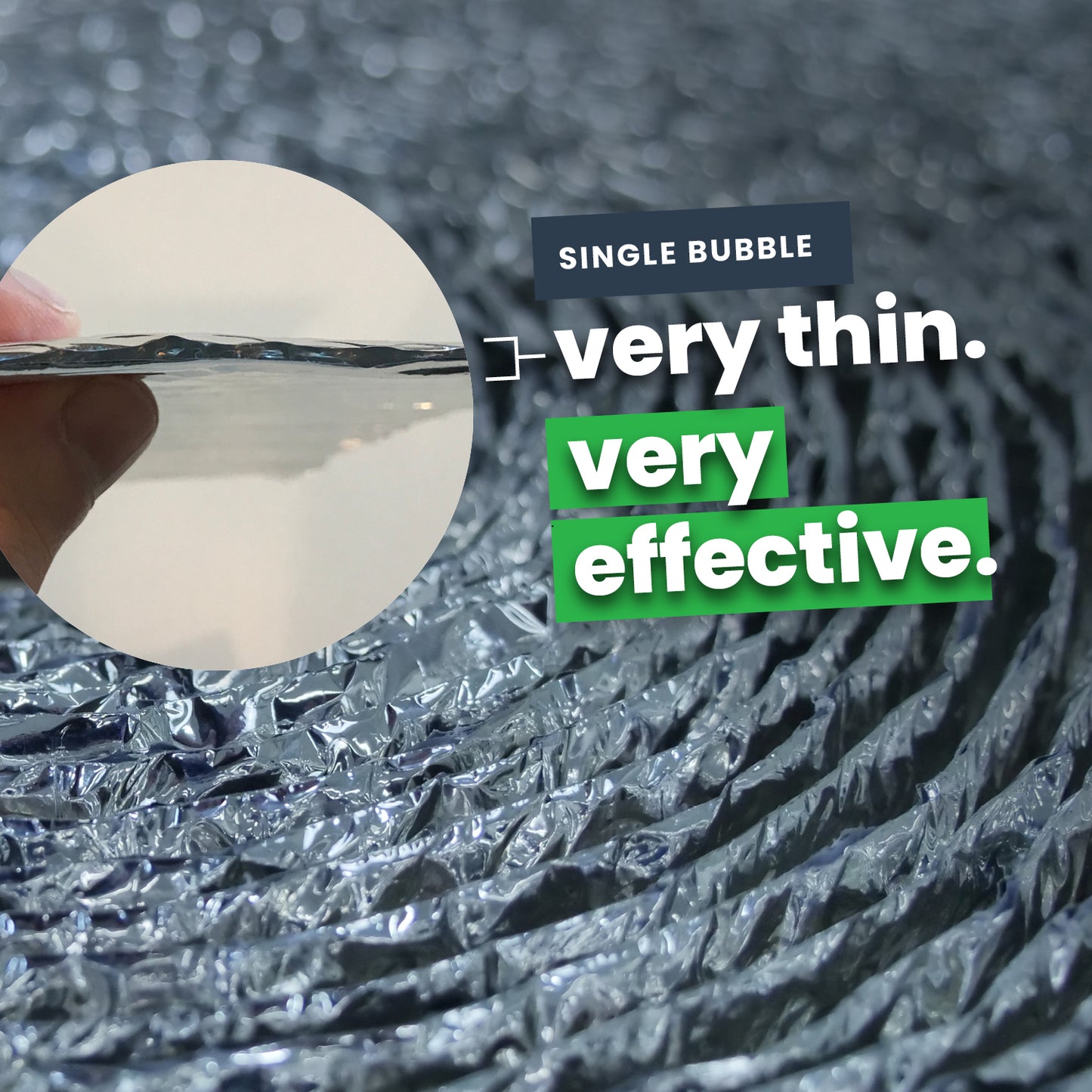

EcoFoil Single Bubble Foil Insulation is primarily used in pole barnsmetal buildingsbasement wallscrawl spaces, and storage units located in moderate climates. Single bubble insulation combines the heat-shielding properties of solid radiant barrier with a layer of polyethylene bubbles, which acts as a built-in air gap that reduces contact between temperatures on either side of the product. The layer of bubbles effectively combats the formation of frost and condensation that can occur when temperature differences are extreme on either side of the material. It's very thin (approximately 1/8" thick), lightweight, and installs easily with minimal equipment. Our white/foil variety offers the same benefits as foil/foil, but with a white finish that faces towards your finished space, providing a more "finished" look.

Important - You must tape any seams on the insulation. By doing this, the product acts as one sheet and maintains the moisture barrier. EcoFoil Single Bubble Foil Insulation is not to be used for under slab applications as the radiant barrier product is exposed. We offer a specific EcoFoil Under Slab Insulation where the radiant barrier is encapsulated between two layers of bubbles.

R-Value Of Radiant Barriers

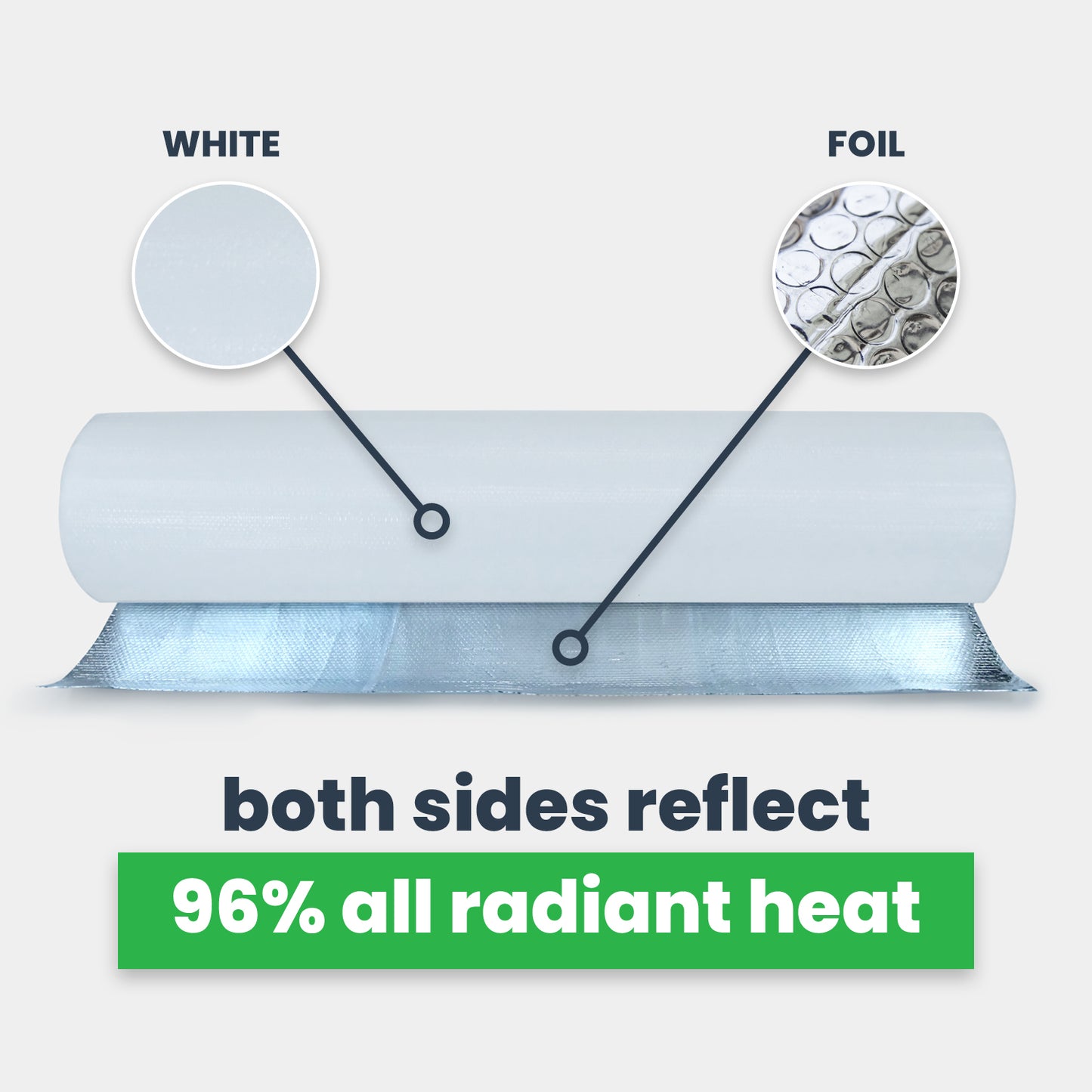

Rather than rating by R-value, all radiant barrier products are measured by their reflective and emissive properties. EcoFoil single bubble insulation is 96% reflective and 4% emissive, meaning the product only allows 4% of radiant heat to pass through.

There are some companies out there posting big R-Value numbers for their radiant barriers, but those numbers are rating the entirety of the system—including the product, air gap, and other building materials. In reality, most radiant barriers by themselves have little to no R-Value. If you need to satisfy a building code of a specified R-Value, we recommend the use of a traditional insulation in conjunction with our radiant barrier in order to meet code. For more information on R-values, see our How It Works page or contact a member of our friendly service team via chat, by calling (888) 349-3645, or using the form here.



Materials:

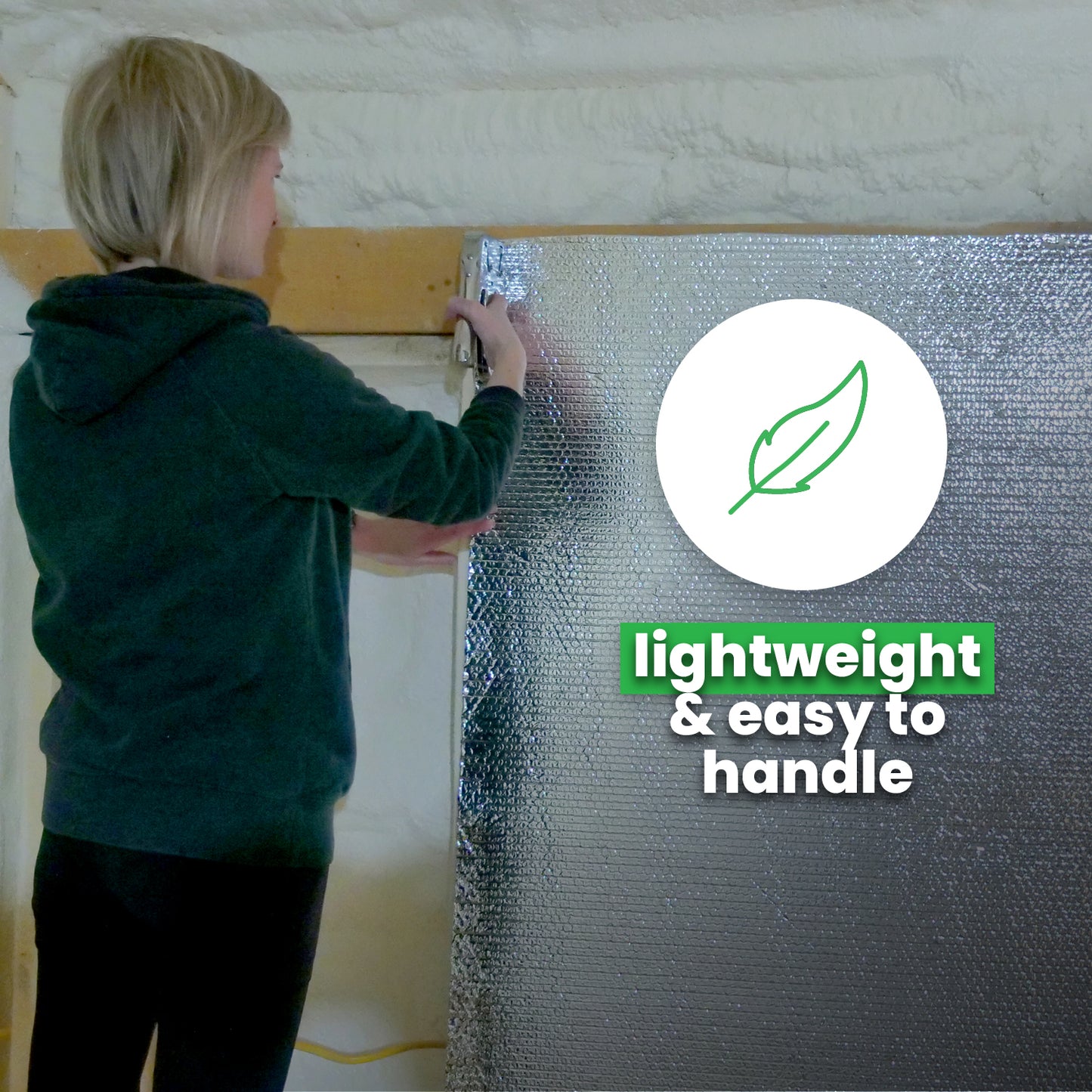

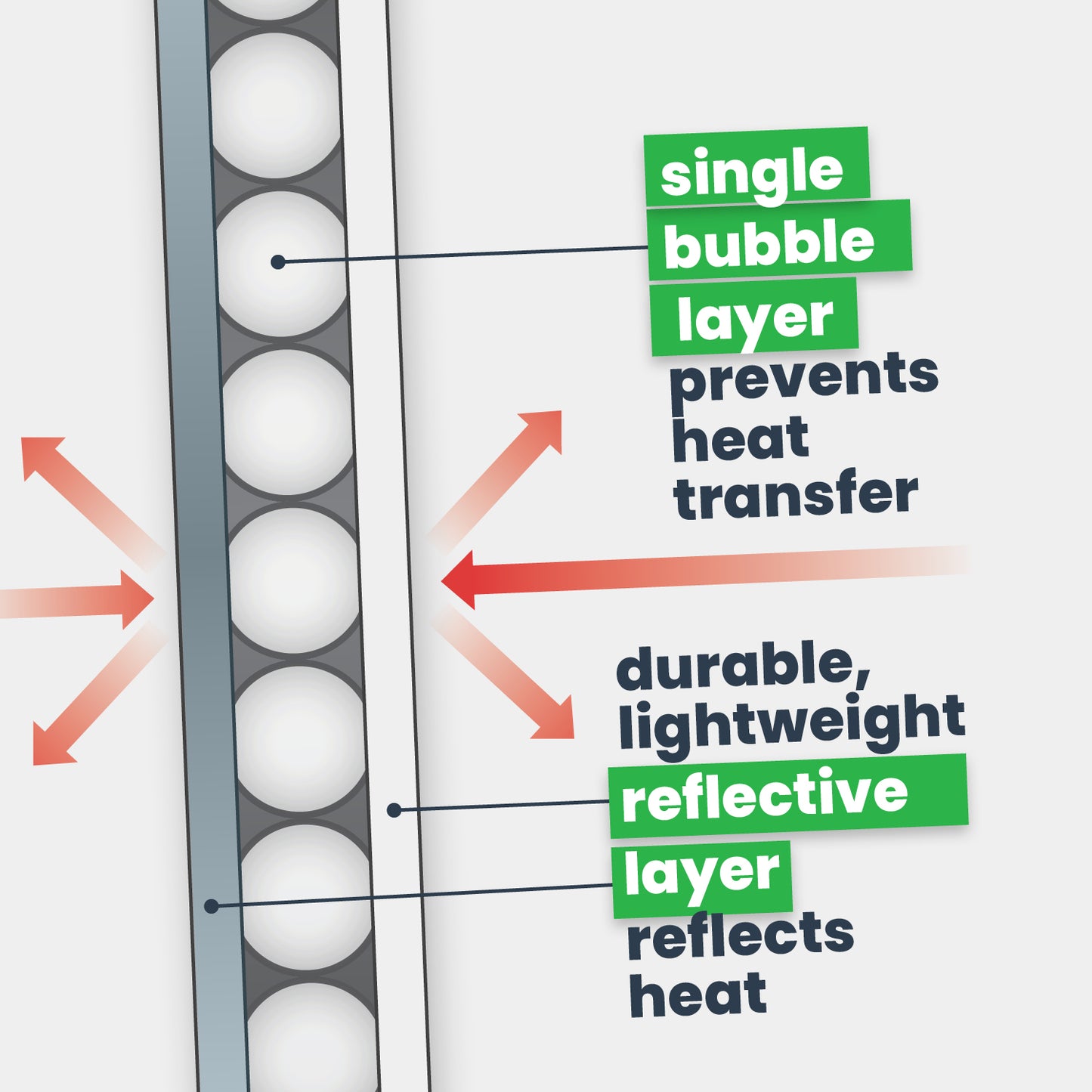

Ecofoil Single Bubble Reflective Insulation is made from a single layer of polyethylene bubbles, sandwiched between two highly reflective surfaces with a metalized coating. This product is classified as Class 1/Class A in accordance with the ASTM-E84-09 fire test standard. The product was mounted in accordance to ASTM-E2599-08. It is lightweight, durable, and is easy to handle and install.

10-year limited warranty:

This product carries a manufacturer’s 10-year limited warranty against material defects, including but not limited to de-lamination, surface imperfection, foil corrosion, and air retention. Please note: this warranty does not necessarily cover defects due to improper installation, natural disasters, normal wear and tear, or exposure to chemicals and gasses. View Manufacturer Warranty

Shipping Info:

This product ships FREE via FedEx Ground. Products ship same-day on orders received before 4pm CT and are typically delivered within 2-5 days. Expedited shipping options available. Call us at 888.349.3645 or contact us for more information on shipping options.

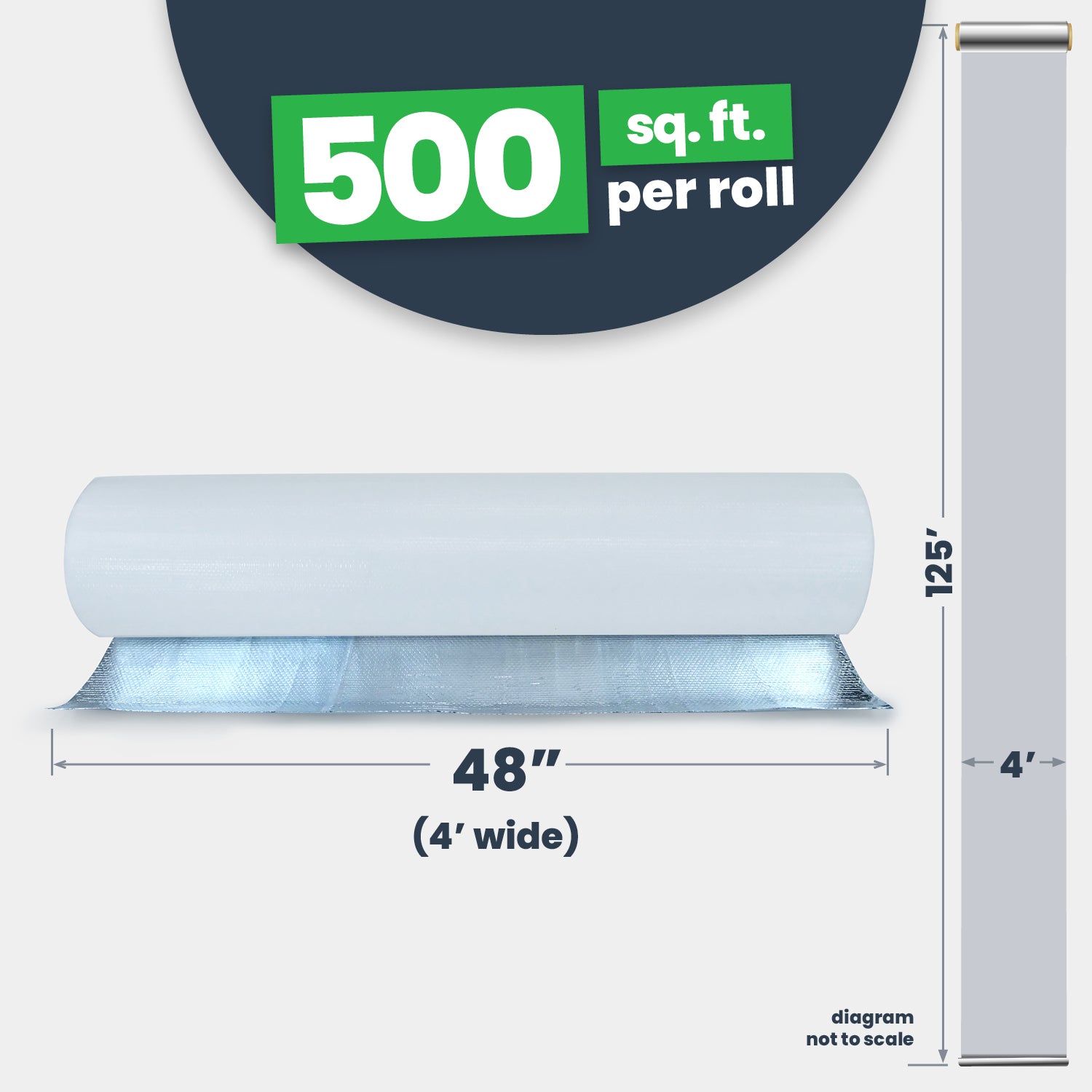

Dimensions:

48 in x 125 ft (500 square feet per roll)

~1/8" thick

Spec Sheets: Download Spec Sheet
View full details
Bubble Foil Insulation from EcoFoil
Browse more Bubble Foil Insulation

Customer Reviews

Based on 30 reviews
93%
(28)
0%
(0)
3%
(1)
0%
(0)
3%
(1)
M
MARTIN DIAZ
Great radiant barrier solution

Great radiant barrier solution. Easy to install. Reduced surface temperatures in our ceiling (warehouse) by almost 30 degrees! Would recommend and will be buying more to complete the rest of the project.

Martin,
Thank you for taking the time to write a review on the Single Bubble Insulation! We are so happy to hear that this was easy to install and that it worked well for your application. Please reach out if we can be of any assistance in the future!

L
Larry Staats
Great product. fast delivery!!

Eco foil is a great product. I build pole barns, and pole shops. I love eco foils products. The sales staff are very knowledgeable on the product. Answered all my questions about the product. I am definitely going to order from eco foils. There now my insulation supplier's.

Larry,
Thank you for your review! We are so happy to hear that our sales representatives were able to help you in getting the right product for your application. If we can be of assistance for any future orders, please let us know! Our team is always happy to help.

R
RANDY HOLT
Great product.

This is a quality product. The company was fast in getting it to me and was in great condition. I highly recommend Ecofoil and this product.

S
Sarah Troutt
Great

I’ve used this twice in shed builds & it works great.

D
David Garfield
Don’t know yet

Just finished installing in my workshop. Can’t tell yet if it’s working or not. Summertime will be the ultimate test. But I will say it’s got to be better than nothing. I’m hoping it will bring my inside shop temperature down 15+ degrees.

David,
Thank you for taking the time to provide us with a review. We're excited to see how this works for you in the summertime! Please feel free to edit this review or add another as summer starts. We appreciate any feedback!

    Single Bubble Insulation - White/Foil - 4' X 125' (500 sq ft)

    Frequently Asked Questions

    Should I choose Single Bubble or Double Bubble Reflective Insulation?

    Generally speaking, you should install single bubble in moderate, warmer climates (Southern US). Single Bubble Reflective Insulation will help prevent the formation of frost and condensation when temperatures are cold on one side of the material, and warm on the other. The larger these temperature differences are, the greater the risk of condensation. If you’re concerned about condensation and would like to maximize protection against it, choose Double Bubble Reflective Insulation.

    What do the bubbles do?

    The layer of bubbles provides a thermal break between hot and cold air, and helps eliminate condensation from forming in your structure. Single Bubble has a single layer of bubbles and is typically used in the southern states where temperature differences inside vs. outside your structure aren't as extreme as northern states with harsher winters.

    How much tape do I need?

    1 roll of tape will be needed for every 500 sq ft of reflective insulation. It's important to tape the seams between adjoining sheets—never use tape to attach the product directly to your structure. Taping the seams creates a vapor barrier when installed properly, and helps ensure the reflective properties of the insulation.


    Which tape do I choose?

    Should I choose a white finish or a foil finish?

    Some customers prefer the white finish as a visual preference. Both White and Foil finishes reflect radiant heat equally well.

    How do I install Single Bubble Insulation?

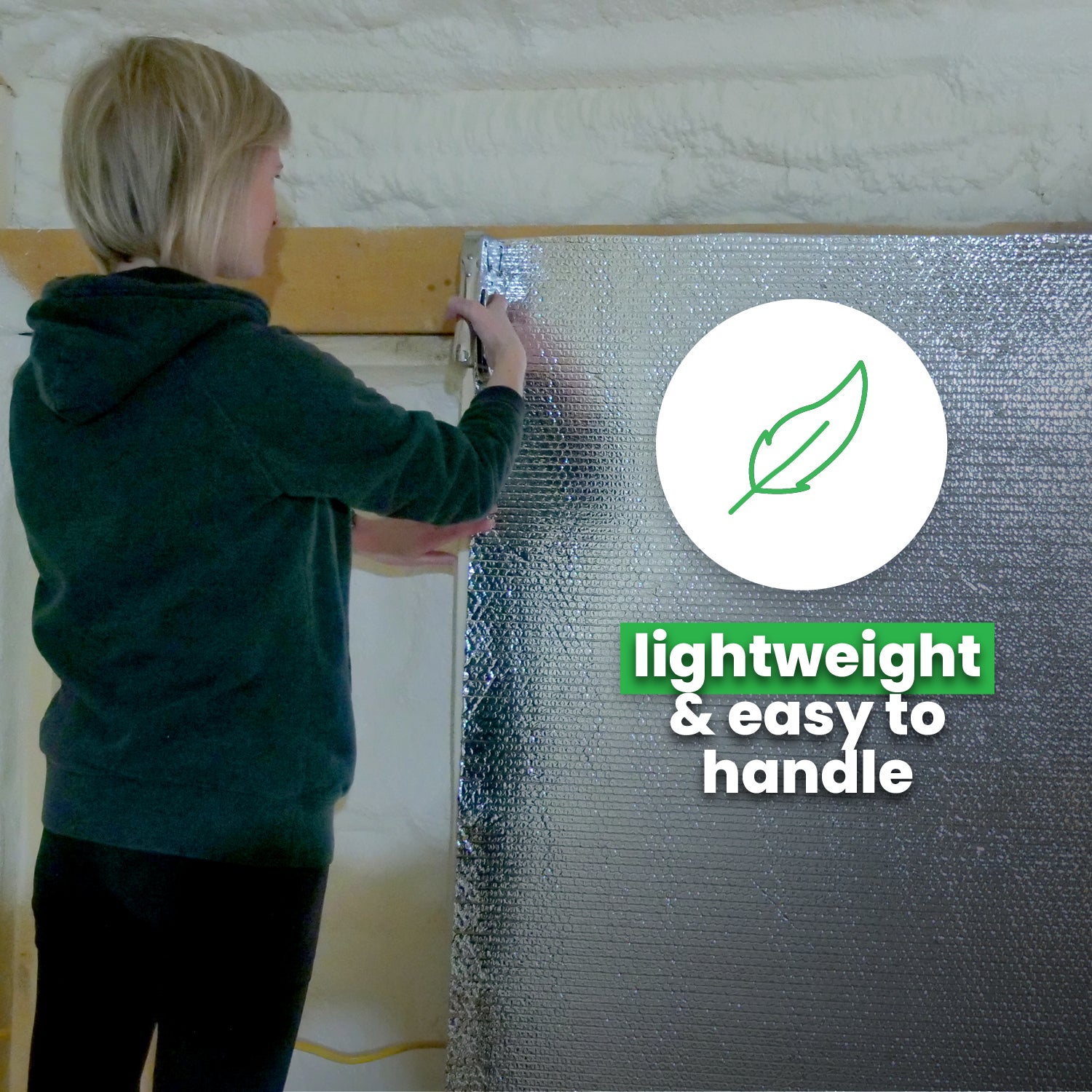

    Installation methods will vary, depending on your application. If your structure has exposed studs, the material can be stapled with a staple gun. If you have nothing to staple the product to, choose a spray adhesive like Spray-Lock Multi-Purpose Eco-Friendly Spray Adhesive. More information on installation methods can be found under the "Shop by Application" tab in the main menu at the top of this page.


    Don't hesitate to reach out to our team if you'd like any advice on your specific project. Give us a call at 888.349.3645, send us a chat, or contact us electronically. We are always happy to help!
